XL Machines, Inc.

Dual Auto Saw from XL Machines is Two Cuts Above The Alternative

A rugged, turn-key automated cutoff saw with built-in flexibility.

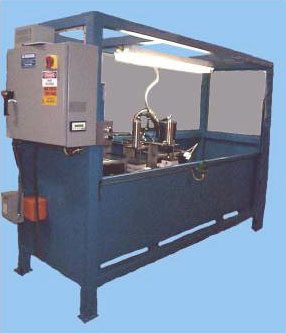

The Dual Arbor Auto Saw was initially designed to precisely cut stainless steel tubing to length, and can be easily adapted to handle a wide range of materials and geometries. The parts are manually loaded and unloaded, and the entire machine cycle is automatic. The part is automatically clamped into position, then each blade andvances, cuts and retracts. The Auto Saw comes standard with 6" travel. Each blade head is mounted on a servo-driven ball screw. One head is fixed laterally, the other is adjustable from 12" to 48" separation. Locking fixed position stops assure rigid setup while allowing quick changeover without tools.

Auto Saw

OPTIONS:


  • Variable servo Feed & blade speed
  • Custom pneumatic clamping
  • Safety light curtains
  • Auto lubrications system
  • Programmable logic controller
  • Quick change slide position
